Responsive Design for Enterprise Applications

Responsive Design that web developers use can now be applied to Enterprise Applications thanks to the Citrix Mobile SDK. This post will give you a glimpse of what is possible to get your wheels turning.

Have you heard of Responsive Web Design?  The term was coined by Ethan Marcotte in his article on A List Apart.  The gist of the idea is that web pages can be designed to adapt or respond to the entity that is viewing it.  The Boston Globe’s website is a good example of responsive design.  You can see by the screenshots below, that given enough screen real estate, the website has a 3 column layout.  But, as the screen width starts to shrink, the layout is adjusted to 2 columns and then 1 column.  Also, the navigation changes to better suit the layout and images are adjusted or hidden.



Applying Responsive Design to Enterprise Applications

Just like web pages, enterprise applications are starting to get viewed on a myriad of devices.  What if we could take some of the same techniques web designers are using and apply that to enterprise applications?  Well, as it turns out, we can with the help of the Citrix XenApp 6.5 Mobile Application SDK.  By using the Mobile Application SDK, enterprise applications that are hosted on a XenApp 6.5 server can respond to the type of device using the application.

Responsive Application Example

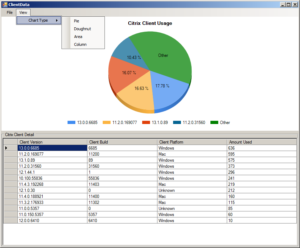

As an example, I wrote an application that takes data from EdgeSight about the types of Citrix clients used in an environment.  The application displays this information in a chart as well as a table.  I then published this application from AppCenter on a XenApp 6.5 server and launched it using a fat client.  You will notice that both the chart and the data table are shown as well as a menu strip at the top to select a chart type.



Now, if you launch the exact same application from the exact same server using a mobile device, some very interesting things happen:



  1. Only the chart is shown initially.  If you rotate the device, only the data table is shown.
  2. The application’s window chrome is gone.
  3. The width and the height of the application were changed to the width and height of the device.
  4. Tapping the chart image brings up the device’s native picker.
  5. Changing the orientation of the device changes the display.

Check out this short video for a demo:



Try It Out Yourself

Want to try it out yourself?  I have made the program and the source available so you can beat it up and come up with some more ideas.  You can download it here.



Author: Jason Conger

Hey there. Hope you like the site.

5 thoughts on “Responsive Design for Enterprise Applications”

  1. Hi Jason,

    Great concept and a perfect use case for the Citrix Mobile Application SDK!

    A small suggestion to add to the application is to subscribe to session re-connection events, e.g. when roaming from a desktop Receiver to a mobile Receiver say, and to flip the desktop/mobile view as appropriate.

    Thanks for a great post!

    Regards,
    Jonathan

      1. Hi Jason,

        From a CMP aware connection, i.e. mobile Receiver, CMP_SESSION_STATE is slave to the corresponding WTS session notifications. In other words, you will need a valid CMP session via OpenSession. However, from a desktop Receiver where a CMP session is not available, you will need to rely on WTS session notifications.

        For the application to be Receiver agnostic, it is simpler to just register for the WTS session notifications and handle session roaming as appropriate.

        Hope that makes sense.

        Regards,
        Jonathan
